Product Description:

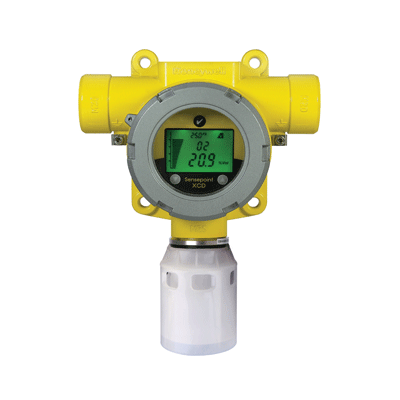

Honeywell Sensepoint XCD H2 Fixed Gas Detector Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit. This enables one-man, non-intrusive operation and reduces routine maintenance time and costs.
Features of Honeywell Sensepoint XCD H2 Fixed Gas Detector:
| Manufacturer |
Honeywell |
|---|---|
| Model |
SensePoint XCD |
| Target Gases |
Hydrogen (H2) |
| Measurable Range |
10.0 to 100.0ppm |
| Accuracy |
<±1ppm |
| Reaction time |
<50 |
| 1st alarm limit |
10ppm |
| 2nd alarm limit |
20ppm |
| Operating Temperature |
-20° to 55°C |
| Power Supply |
Sensepoint XCD is supplied complete with integral wall mounting plate, 2 x M20 cable entry (ATEX/IECEx) or 2 x ¾”NPT conduit entries (UL/cUL), |
| Input Voltage Range |
12 to 32VDC (24VDC nominal) |
| Max Power Consumption |
Maximum power consumption is dependent on the type of gas sensor being used. Electrochemical cells = 3.7W, IR = 3.7W |
| Current Output |
Sink or source |
| Relays |
3 x 5A@250VAC. Selectable normally open or normally closed (switch) and energized/de-energised (programmable) |
| Communication |
RS485, MODBUS RTU |
| Material |
• Housing: Epoxy painted aluminium alloy ADC12 or 316 stainless steel • Sensor: 316 stainless steel |
| Mounting |
Integral mounting plate with 4 x mounting holes suitable for M8 bolts. Optional pipe mounting kit for horizontal or vertical pipe Ø1.5 to 3" (2" nominal) |
| Cable Entry |
ULcUL versions: 2 x ¾”NPT conduit entries. Suitable blanking plug supplied for use if only 1 entry used. Seal to maintain IP rating; ATEX/IECEx versions: 2 x M20 cable entries |
| IP Rating |
IP66 in accordance with EN60529:1992 |
| EMC |
CE: EN50270:2006 EN6100-6-4:2007 |
| Weight |
• Aluminium Alloy LM25: 2.0kg • 316 Stainless Steel: 5.0kg |
