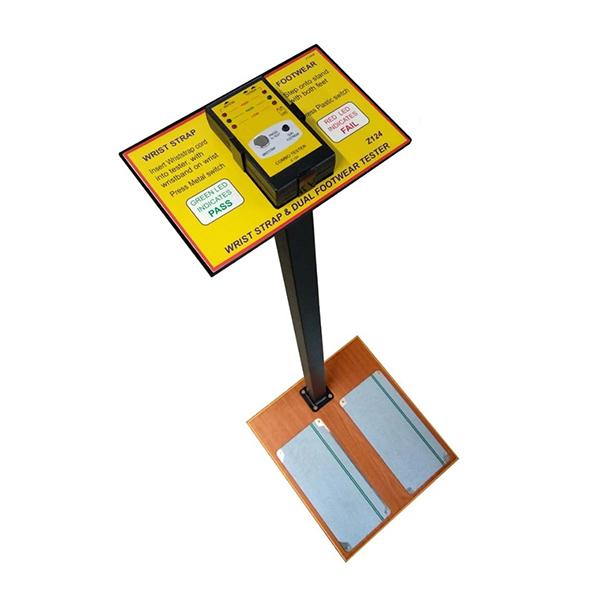

Combo Tester with Footplate

Description:

Wrist straps and ESD footwears are the first line of defence against electrostatic charge build up on the human body. In order to protect sensitive electronic components, the maximum wrist strap plus Body resistance should not be more than 10 meg ohms and Footwear resistance should not be more than 100 Mega ohms. On the other hand, the resistance should not be less than 0.75 Mohm as protection to the wearer from dangerous levels of voltage and current flow. This combination Wriststrap & DUAL footwear tester checks these parameters under realtime operating conditions. The footwear section gives a warning if either of the Footwear is defective.

Specification:

1. Pass Range: Wrist strap 0.75 to 10.0 meg ohm Footwear 0.75 to 35.0 meg ohm
2. Actuation: By gently pressing respective buttons
3. Accuracy: +10%
4. Power requirement: 9 V DC battery.
5. Low Battery: Orange - Warning less than 7 volts.
6. Dimensions & Wt: (instrument) 125 x 75 x 29 mm 150 Gms (Stand) 400 x 400 x 950 mm ht. 6 Kgs
7. Calibration Recommended every 12 months.
8. Traceability: To national standards
9. Warranty: 12 months.
10. Conformance: EN 61340-5-1
