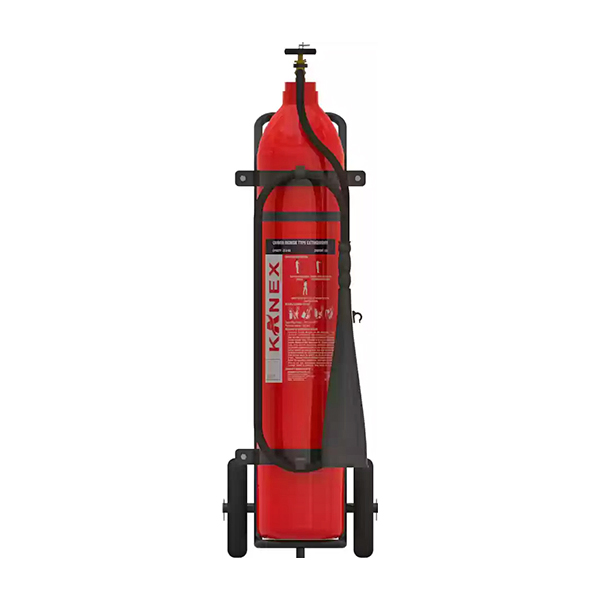

Co2 (HP) Trolley Mounted 22.5 Kg Fire Extinguisher

Code : Kanex KFCRQ-22.5

Product Description:

99.95% Pure Carbon Di Oxide gas.
Certifications: BIS Approved (IS 16018: 2012) & CE certified.
Bodies CCOE/PESO approved.
High quality enamel paint.
Brass valve of squeeze/wheel type with pressure relief discs.
Trolleys with an ability to withstand high mechanical stress.
High strength Solid Rubber wheels.
Shells are Hydro tested to 250 bar.
High pressure Wire braided Hose.
Easy as well more economical to maintain & service.
Maximum visibility during Discharge.
No Electrical Conductivity Back to the operator.
No Thermal or Static Shock.

TECHNICAL SPECIFICATIONS:

Capacity	22.5 kg
Fire Rating	89B
Diameter (Approx.)	232±10 mm
Average Range of throw	4 m
Operating Temperature	-30 °C to +55 °C
Empty Weight (Approx.)	61.5 or 63.5 kg
Shipping Weight (Approx.)	85 or 87 kg
Approvals	BIS
Design	Hose & Horn
Height (Approx.)	1155 mm
Average Discharge time	47 Sec.
Average % Discharge	96%
Service/Max. service/Test Pressure	60 / 105 / 250 bar
Full Weight (Approx.)	84 or 86 kg
Packing Standard	Corrugated paper & Jute Bags
