Product Description:

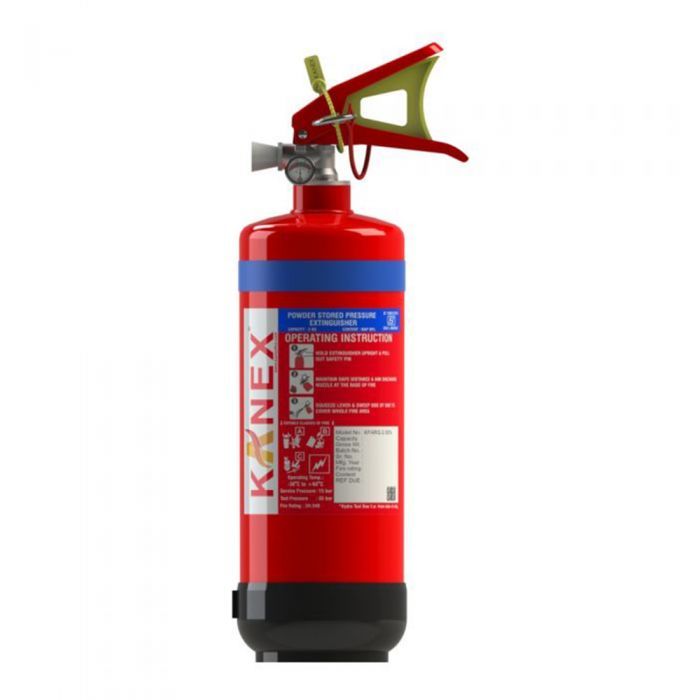

ABC Dry Powder MAP-90% (Stored Pressure) 2 kg Fire Extinguishers applicable on Class A, B, C and electrically started fires.
Brief description: ABC Dry Powder MAP-90% Fire Extinguishers with nominal charge of 2 kg (+/-3%). Constructed of MS Sheet by MIG Welding process and brass forged discharge Valve.
Approved Fire ratings 1A:21B with an effective throw of about 2 meters (Min. 2 m.) and discharge about 95% (Min. 85%)

GENERAL DATA

• Manufacturer Kanadia Fyr Fyter Pvt Ltd
• Trade Mark “KANEX”
• Standard Code IS 15683:2006
• Type Portable Stored Pressure
• Quantity

MATERIALS OF CONSTRUCTION

• Extinguishing Medium Mono Ammonium Phosphate based dry powder 90% (Confirms to IS 14609)
• Body Mild Steel Sheet having Max. of 0.25% C, 0.05% P and 0.05% S
• Neck Ring M.S. Pipe
• Valve Brass
• Siphon Tube Plastic
• Pressure Gauge/indicator As per IS 15683:2006
• Discharge Nozzle Plastic
• Wall mounting Bracket with screw Mild steel (Powder Coated)/M.S

GUARANTEED PERFORMANCE

• Performance Requirement Min. effective Discharge Time: 8 Sec. (Actual : 14 Sec. approx)
• Bulk Range of Discharge: Min. 2 meter (Actual : 2.5 meter approx)
• Percentage of Discharge: Not Less than 85 % (Actual : 95% approx)
• Temperature Range -30 °C to +55 °C
• Service Pressure 15 bar
• Maximum Service Pressure 18 bar

ROUTINE TESTS

• Pressure test (Pt) 35 bar (3.5 MPa)
• Minimum Burst Pressure test (Pb) for Body 55 bar (5.5 MPa)
• Leakage test By applying soap solution leakage to checked
• Partial discharge The second pressure or weight shall not be less than 75% of the first after interruption of the Discharge.
• 4.05 Burst Pressure Test For Discharge Hose Not Less than 35 bar (3.5 Mpa)

TYPE TESTS As per IS 15683

• DIMENSIONS Max. Diameter: 106±10 mm.
• Height: 380 mm (Approx.)
• Thickness of sheet Made Up of 1.6 mm
• Full weight of cylinder 4.0 kg (Approx)
• ANTI - CORROSIVE TREATMENT Phosphate Treatment Followed by epoxy powder coating of body DFT Not less than 50 Micron
• ACCESSORIES (BRACKETS & SCREWS) Provided

MISCELLANEOUS

• Inspection & Testing As per approved GTP
• Finish PO Red as per IS : 5 (Shade 538 )
• Marking As per IS 15683:2006
• Approvals BIS
• Maintenance, Care and Refilling As per IS:2190
• Packing Corrugated boxes (Outer box sizes: 255x255x420mm)
