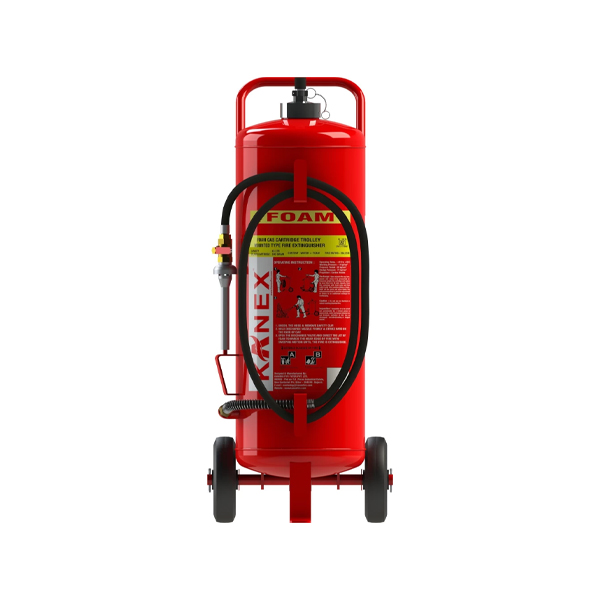

Product Description:
Applicable fire class A&B, Can Height 1000mm, Diameter 310 mm, Controllable Discharge mechanism, Discharge Time min. 30-160 Sec, Jet Range 9 Meters, Average Discharge is 95%, Fitted with EPDM Hose with SS spring of 300mm to avoid kink (5meter long) & Air aspirated Nozzle, CO2 gas Cartridge of 300 grams. Confirms to IS 4947, External Pure polyester (UV Resistant) and Internal Epoxy polyester powder coated, Brass forged cap, and Welding Procedure approved by TPI with 6G certification. Confroms to IS 16018:2012,Fire rating 20A:233B
|
Capacity
|
60 Ltr
|
Design
|
Hose & Nozzle
|
|
Fire Rating
|
20A:233B
|
Height (Approx.)
|
1200 mm
|
|
Diameter (Approx.)
|
300 ±10 mm
|
Average Discharge time
|
180 Sec.
|
|
Average Range of throw
|
9 m
|
Average % Discharge
|
90%
|
|
Operating Temperature
|
+5 °C to +55 °C
|
Service/Max. service/Test Pressure
|
15 / 17 / 35 bar
|
|
Expelling Agent
|
Co2
|
Full Weight (Approx.)
|
108 kg
|
|
Empty Weight (Approx.)
|
48 kg
|
Shipping Weight (Approx.)
|
109 kg
|
|
Mounting
|
Trolley Mounted
|
Approvals
|
BIS
|
