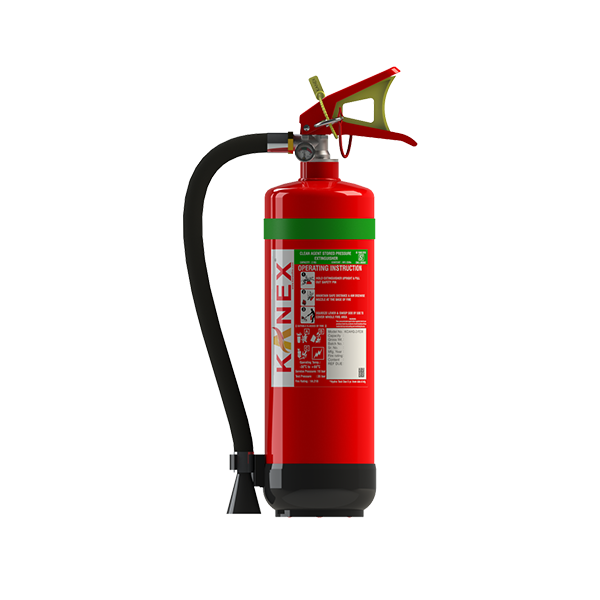

2 Kg Clean Agent Fire Extinguisher (FE 36 Based Portable Stored Pressure)

Code : Kanex KCAHQ-2-FE36

2 Kg Clean Agent Fire Extinguisher (FE 36 Based Portable Stored Pressure)

Product Description:

  • Chemours make UL Listed FE 36 Clean Agent Gas with Zero ODP
  • Unique gauge testing system (UGTS) mechanism
  • CE marked , brass chrome plated valve
  • Internally Epoxy polyester and externally pure polyester powder coating
  • Best available Fire ratings in its class.
  • Helium Leak detection tested for leakage, leak rate upto 1X10-8 mbar.l/sec.
  • Welding Procedure approved by TPI with 6G.
  • Latest BIS approved – (IS 15683:2006), ISI marked and CE marked.
  • Tamper seal to detect any mishandling.
  • Anti-corrosive Phosphate treatment of Cylinders.
  • Large loop stainless Pull pin
  • More flexible EPDM hose.
  • Lever lock for better handling.
  • Bar Code labeling for better traceability.
  • Easy to maintain, recharge & service.

Techniclal Specifications

Capacity
2 kg
Fire Rating
1A:21B
Diameter (Approx.)
106±10 mm
Average Range of throw
2 m
Operating Temperature
-30 °C to +60 °C
Expelling Agent
Nitrogen (UHP Grade)
Empty Weight (Approx.)
1.4 kg
Packing Standard
Inner- 13.75"X4.75"X4.75” Outer (4 in 1)- 16.5"X10"X10”
Approvals
BIS & CE
Design
Nozzle
Height (Approx.)
380 mm
Average Discharge Time
14 Sec.
Average Discharge
95%
Service/Max. service/Test Pressure
15 / 18 / 35 bar
Full Weight (Approx.)
3.4 kg
Shipping Weight (Approx.)
3.6 kg
Mounting Bracket
Wall bracket
