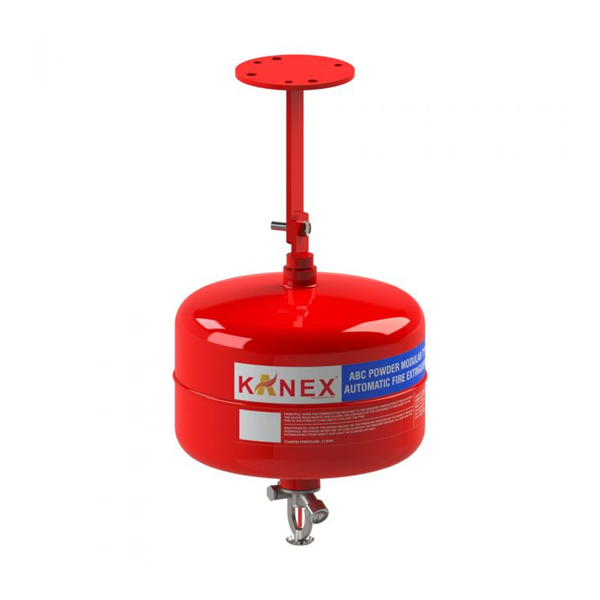

5 Kg Automatic Modular Fire Extinguisher (MAP 90 Based)

Code : Kanex KMPRQ-5-90%

Key Features:

  • High quality MAP 90% Powder.
  • Unique gauge testing system (UGTS) mechanism.
  • Brass chrome plated discharge sprinkler.
  • Tough Exterior and interior Coating with Pure Polyester (PP) powder.
  • Automatic Detection and Suppression in a single unit.
  • Extinguisher shells are 100% factory hydro tested to excess of 35 bar.
  • Expelling Agent UHP (Ultra High Pure) Grade Nitrogen.
  • Anti-corrosive Phosphate treated modules.
  • Provides securities in case of emergencies and power failure without power backup.
  • Easy as well more economical to maintain, service and re chargeable.
  • Bar Code labeling for better traceability.

Techniclal Specifications:



MODEL
KMPRQ-5-90
Capacity
5 kg
Height (Approx.)
3754 mm
Average Discharge Time
6-8 Sec.
Operating Temperature
-30 °C to +55 °C
Expelling Agent
Nitrogen (UHP Grade)
Empty Weight (Approx.)
2.6 kg
Mounting Bracket
Ceiling mounting stand
Volume Protection
2-2.5 m 3
Hanging Height Above Risk
2 m
Design
Ceiling Mounted
Diameter (Approx.)
230±10 mm
Average Discharge
98%
Service/Max. service/Test Pressure
15 / 35 bar
Full Weight (Approx.)
7.6 kg
Shipping Weight (Approx.)
7.7 kg
Approvals
Any Government approved Lab
Area Protection
1.5-2 m2
